| الـ MOQ: | 1 |
| السعر: | قابل للتفاوض |
| فترة التسليم: | 7-16days |
| طريقة الدفع او السداد: | خطاب الاعتماد، د/أ، د/ف، تي/تي |
| القدرة على التوريد: | 10000 قطعة |

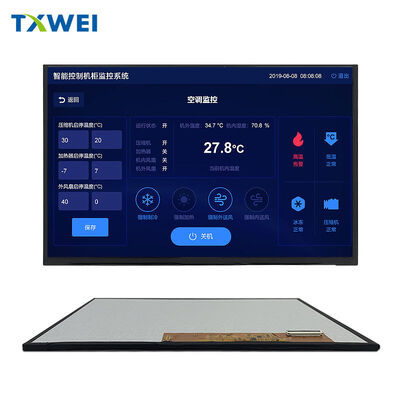

| Parameter | Value | |
|---|---|---|
| Model | TXW100090S0 | |
| Size | 10.1 inch | |
| Resolution | 1280 × 800 pixels | |
| Viewing Angle | IPS (Full viewing angle) | |
| Brightness | 900 cd/m² (nits) | |
| Interface | LVDS 8-bit 40-pin | |
| Driver IC | EK79202 | |
| Active Area | 216.96 × 135.6 mm | |
| Outline Dimensions | 229.1 × 148.9 × 4.3 mm | |
| Operating Temperature | -30℃ ~ +80℃ | |
| Storage Temperature | -30℃ ~ +80℃ |
Product Highlights (Bullet Points)
✅ Sunlight Readable – 900 nits high brightness for outdoor and high-ambient-light environments
✅ All-Angle Visibility – IPS technology ensures consistent colors and contrast at any viewing angle
✅ Extreme Temperature Operation – Reliable performance from -30℃ to +80℃ industrial range
✅ Versatile Integration – Standard LVDS 40-pin interface compatible with major industrial controllers
✅ Rugged Industrial Design – Built for agricultural vehicles, trucks, medical devices, and factory automation
TXW100090S0, 10.1 inch LCD display, IPS display module, 1280x800 LCD, high brightness display, 900 nits LCD, industrial LCD panel, LVDS display, automotive display, agricultural machinery display, medical LCD, wide temperature LCD, EK79202 driver, sunlight readable display
