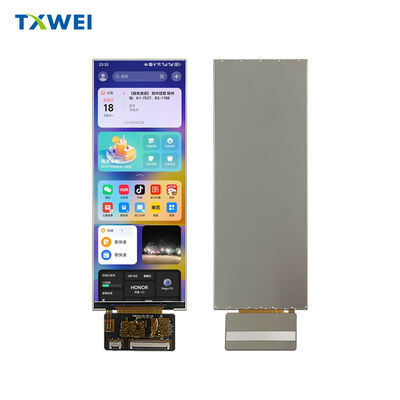

6.2 inch 480*1280 bar Incell embedded touch kitchen appliance display panel LCD display screen

المنتجات

6.2 inch 480*1280 bar Incell embedded touch kitchen appliance display panel LCD display screen

الـ MOQ:	1
السعر:	قابل للتفاوض
فترة التسليم:	7-16days
طريقة الدفع او السداد:	خطاب الاعتماد، د/أ، د/ف، تي/تي
القدرة على التوريد:	10000 قطعة

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ

شنتشن

اسم العلامة التجارية

TXWEI

إصدار الشهادات

CE FCC ROHS

رقم الموديل

TXW620011B0

عدد وحدات البكسل:

480*1280

عرض الاتجاه:

عرض واجهة:

سطوع:

1200 شمعة

المنطقة النشطة:

54.43*146.65

حجم المخطط التفصيلي:

54.84*147.05*2.23 مللي متر

درجة حرارة التشغيل:

-20+70 ℃

درجة حرارة التخزين:

-30+80 درجة مئوية

عدد الدبابيس:

40 دبوس

إبراز:

6.2 inch bar LCD display screen,Incell embedded touch display panel,kitchen appliance TFT LCD display

Incell embedded touch display panel

kitchen appliance TFT LCD display

وصف المنتج

6.2 Inch Ultra-Thin In-Cell Touch Display Module | TXW620011B0-ZDD

The 2.23mm Display Revolution for Smart Home and IoT Devices

When your product design demands elegance without compromise, the TXW620011B0 delivers a breakthrough combination of slim industrial design and responsive touch performance. This 6.2-inch vertical bar-type display achieves what conventional touchscreen modules cannot: a total thickness of just 2.23 millimeters including the touch functionality—eliminating bulky air gaps and separate touch layers that typically add 3-4mm to your stack-up.

Built around a sharp 480×1280 pixel resolution IPS panel and driven by the reliable JD9265T IC, this module offers 1200 nits of brightness for crystal-clear visibility in bright kitchens, sunlit living rooms, and demanding industrial environments. The integrated In-Cell capacitive touch technology ensures immediate response to user input while maintaining the sleek, modern aesthetic that premium smart devices require.

Why Engineers Choose This Display Module

Revolutionary 2.23mm Total Thickness

Traditional touchscreen assemblies force you to compromise. You either accept the bulky 5-6mm stack of display-plus-glass-sensor, or you sacrifice touch functionality. The TXW620011B0-ZDD eliminates this dilemma through advanced In-Cell integration, embedding the touch sensor directly within the liquid crystal cell structure.

The engineering advantage is immediate: Your smart speaker housing becomes slimmer. Your range hood control panel achieves that floating-glass look your designers envisioned. Your portable medical device loses weight without losing screen size. At 54.84 millimeters wide by 147.05 millimeters tall, the active display area of 54.43 by 146.65 millimeters maximizes screen-to-body ratio while leaving minimal bezel for your product enclosure.

When paired with the optional cover glass assembly, the total dimensions expand to 65 by 168 millimeters with a finished thickness of merely 4.23 millimeters—still thinner than most smartphones on the market today.

True In-Cell Touch Architecture

Unlike outdated G+G (Glass-Glass) or G+F (Glass-Film) constructions that laminate separate touch sensors on top of the display, our In-Cell technology embeds the capacitive electrodes between the TFT substrate and color filter. This manufacturing precision delivers three critical benefits for your end product:

Optical Clarity: Without additional adhesive layers or air gaps between the display and touch sensor, light transmission improves significantly. Colors appear more vibrant, and your UI elements look painted on the surface rather than recessed behind glass.

Touch Sensitivity: The elimination of physical distance between the finger and the sensing electrodes results in faster response times and better performance with moisture present—essential for kitchen appliances where wet fingers are common.

Mechanical Durability: Fewer layers mean fewer potential failure points. The sealed structure resists dust ingress and withstands the thermal cycling typical of oven displays and industrial control panels.

1200 Nits High-Brightness IPS Panel

Visibility defines usability. Whether your device operates under bright kitchen spotlights or in sunlit outdoor environments, the 1200 cd/m² brightness rating ensures your interface remains readable without forcing users to squint or shield the screen. The IPS (In-Plane Switching) technology maintains color accuracy and contrast ratios across 178-degree viewing angles, meaning multiple users can view the display simultaneously from different positions—perfect for family kitchen scenarios or collaborative industrial workstations.

The 480×1280 resolution spreads across the 6.2-inch diagonal to provide approximately 247 pixels per inch—sufficient for crisp text rendering and detailed iconography without the cost overhead of Quad HD panels that drain battery life unnecessarily.

Vertical 3:8 Aspect Ratio for Modern Interfaces

The unique 480×1280 resolution creates a portrait-oriented canvas that mirrors the smartphone experience users already understand instinctively. This vertical 3:8 aspect ratio excels in:

Scrolled Content: Recipe instructions, equalizer settings, and system logs flow naturally from top to bottom, utilizing the 146.65-millimeter active height to minimize horizontal swipes.

Segmented Controls: Dividing the screen into upper (status), middle (interaction), and lower (navigation) zones feels intuitive on a tall display, reducing cognitive load for users interacting with complex appliances.

Ergonomics: At 54.43 millimeters wide, the display fits comfortably within adult thumb reach when mounted on handheld remotes or portable medical devices.

Application Scenarios Where This Display Excels

Smart Kitchen and Home Appliances

For range hood manufacturers battling grease and steam, or oven builders requiring heat-resistant interfaces, the TXW620011B0-ZDD provides the reliability your brand reputation demands. The 4.23-millimeter total thickness (including cover glass) allows seamless integration behind tempered glass control panels, creating that premium flush-mount appearance consumers expect from high-end appliances.

The -20°C to +70°C operating temperature range accommodates the heat generated by ovens and cooktops while remaining stable during winter warehouse storage or frozen food preparation areas. Touch functionality remains responsive even when users operate controls with slightly damp hands—a common scenario in active kitchens.

Premium HiFi Audio Systems

Modern wireless speakers and studio monitors demand interfaces that complement acoustic engineering rather than interfere with it. The ultra-slim 2.23-millimeter profile preserves internal air volume for speaker chambers or passive radiators, while the 1200-nit brightness cuts through ambient stage lighting or sunny window placement.

Album artwork displays with vivid color reproduction thanks to the IPS panel's wide gamut, and the vertical format naturally accommodates track metadata, playback controls, and volume sliders in a single, uncluttered view. The MIPI DSI interface generates minimal electromagnetic interference, ensuring your audio signal paths remain pristine.

Medical Instruments and Industrial Controllers

Portable diagnostic equipment requires displays that balance readability with portability. The 6.2-inch diagonal provides sufficient real estate for waveform displays and measurement readouts without forcing clinicians to squint at smaller screens. The 65-millimeter module width (with glass) suits ergonomic handheld grips, while the 168-millimeter height allows one-thumb operation of essential controls.

In industrial applications, the MIPI 4-lane interface ensures stable video transmission even in electrically noisy environments near motors and power supplies. The -30°C to +80°C storage temperature rating protects your inventory during overseas shipping or outdoor field service vehicle storage.

Technical Specifications Summary

Model Number: TXW620011B0
Display Configuration: 6.2-inch diagonal TFT LCD with integrated In-Cell capacitive touch
Resolution: 480 pixels horizontally by 1280 pixels vertically (3:8 aspect ratio)
Display Technology: IPS full-viewing-angle technology
Interface Type: MIPI DSI 4-lane high-speed serial interface, 40-pin connector
Driver Integrated Circuit: JD9265T (proven stability for embedded applications)
Luminance Output: 1200 nits (cd/m²) for high-ambient-light visibility

Physical Dimensions - Bare Module:
Width: 54.84 millimeters
Height: 147.05 millimeters
Depth: 2.23 millimeters (display and touch integrated)

Physical Dimensions - With Cover Glass Assembly:
Width: 65 millimeters
Height: 168 millimeters
Depth: 4.23 millimeters (including protective cover glass and bonding adhesive)

Active Display Area: 54.43 millimeters wide by 146.65 millimeters tall

Environmental Ratings:
Operating Temperature Range: -20 degrees Celsius to +70 degrees Celsius
Storage Temperature Range: -30 degrees Celsius to +80 degrees Celsius

Customization and Ordering

Available Modifications

We understand that off-the-shelf rarely fits perfectly. The TXW620011B0 platform accommodates several customization options to match your mechanical and optical requirements:

Cover Glass Specifications: Choose from 0.55mm chemically strengthened glass for maximum thinness, 0.7mm for standard durability, or 1.1mm for heavy-duty industrial applications. Surface treatments include AG (anti-glare) for office environments, AF (anti-fingerprint) for high-touch kitchen use, and AR (anti-reflective) coating for outdoor visibility enhancement.

Interface Flexibility: Standard configuration features a 40-pin MIPI connector with top or bottom FPC exit options. Custom FPC lengths available upon request to accommodate your specific PCB layout without requiring extension cables.

Brightness Tuning: While standard 1200 nits suits most applications requiring sunlight readability, we offer factory calibration to 1000 nits for power-sensitive battery applications or 1400 nits for extreme outdoor industrial use cases.
