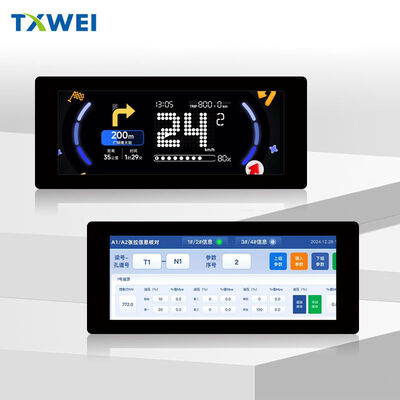

6.2inch 480*1280 interface MIPI TFT touch two wheeler instrument screen assembly module INCELL screen

TXW620009B0-CTP product in-depth analysis

1, This is not an ordinary 6-inch screen, but a precise card slot for the "vertical bar shaped car gauge screen"

Most 6.2-inch screens on the market are landscape (16:9), while this 480 × 1280 has a vertical stripe ratio of 3:8. This seemingly niche resolution precisely hits the biggest pain point of the current intelligent upgrade of two wheeled vehicles (electric motorcycles/bicycles) - the traditional circular or landscape instrument panel occupies too much space in the narrow and long handle area, while the vertical bar screen can be perfectly embedded in the center of the handlebar, retaining the navigation information display area without affecting the riding view.

1200nits brightness is not a big deal in the field of mobile phones, but it is an entry-level car standard in the field of car instruments (comparison: iPhone outdoor brightness is about 1000-1200 nits). This means that under direct sunlight at noon, riders can still see the speed and battery level clearly, instead of turning into a "blackboard" like a regular screen.

2, The value of In Cell structure is severely underestimated

The parameter table only contains the word 'Incell', but this involves two engineering decisions:
Thickness control: The total thickness is 5.68mm, including the touch layer. The traditional G+G (glass+glass) structure usually requires 7-8mm, but this one can achieve a 5mm level, which means that the overall ID design of the machine can be more aggressive - such as making a streamlined instrument cover close to the handle, instead of protruding blocks.

Touch experience: In Cell integrates touch sensors into the LCD panel, significantly improving the sensitivity of wet touch and glove touch compared to external touch. This is essential for riding on rainy days or operating with motorcycle gloves. If you have used a regular electric vehicle dashboard, you should know the pain of not being able to touch it with wet hands.

3, Cost implications of MIPI 4 Lane interface

Using MIPI instead of RGB indicates that the driver IC JD9265T supports high-speed serial transmission. This brings three implicit advantages:
EMC electromagnetic compatibility is better: There are large interference sources such as motors and controllers inside the two wheeled vehicle, and MIPI's differential signal is more anti-interference than parallel RGB

Thinning of wiring: 40PIN saves space compared to RGB 50+PIN, and is more flexible when passing through handle bends
Power consumption reduction: For battery powered devices such as two wheelers, every 10mA decrease in standby current is a selling point

4, Reliability Engineering Behind Temperature Parameters

-30 ℃~+85 ℃ is not written casually. -30 ℃ means that the first startup in winter morning in Heilongjiang will not freeze the LCD or respond slowly; +85 ℃ means that there will be no liquid leakage or touch drift due to the midday sun exposure in Hainan and the device's own heating (which may reach 90 ℃ inside the box).

Pay special attention to the storage temperature of -40 ℃~90 ℃, which is wider than the working temperature. This considers transportation scenarios - from cold chain logistics in Shenzhen factories to warehouses in Northeast China, or direct sunlight transportation in containers during summer, where equipment can withstand more extreme temperatures when not powered on. This is the essential difference between automotive grade and consumer grade.

5, Key Reminders for Structural Design (To ID Engineers)

There is a 10mm gap between the external dimensions of 62.29 × 163.36mm and the touch dimensions of 72.43 × 176.65mm. This indicates that:
There is a circle of BM area (black border) outside the LCD AA area (54.43 × 146.65mm)

The touch layer is one circle larger than the display screen and may include touch button areas or simply assembly allowance
When designing the casing, it should be noted that the window opening should be at least 1.5mm larger than one side of the AA area (to prevent tolerance from causing white edges), but the touch effective area can extend to the edge of the casing for a "borderless" effect

Thickness direction: The LCD screen body is 4.38mm, and the total thickness of the touch panel is 5.68mm, indicating that the stacking height of the touch panel+FPC+backlight structure is only 1.3mm, which belongs to the ultra-thin design. But please note whether this 5.68mm includes foam/adhesive backing? If a waterproof structure is to be constructed, an additional buffer space of 0.3-0.5mm needs to be reserved.

6, Suggestions for precise strikes in application scenarios

Two wheeler dashboard: Don't just display simple speed. Use the long side of 1280 to create a segmented UI - upper half navigation (simplified map display), middle speed, and lower half music control. 1200nits brightness support automatic light sensing adjustment (maximum brightness during the day, automatically reduced to below 200nits at night to prevent glare).

Agricultural machinery central control: Agricultural machinery has high vibration and dust. Suggest the customer to add AG anti glare film (high brightness without film attenuation) and buffer bracket. The I2C touch interface can support redundant design of physical buttons (in case of touch failure, the I2C bus can be connected to a physical keypad).

Medical equipment: This size is suitable for portable ultrasound or monitoring devices. But medical needs stricter EMC certification, and the shielding design of MIPI interfaces requires additional attention. -The low-temperature start-up capability of 30 ℃ is suitable for outdoor emergency situations.
