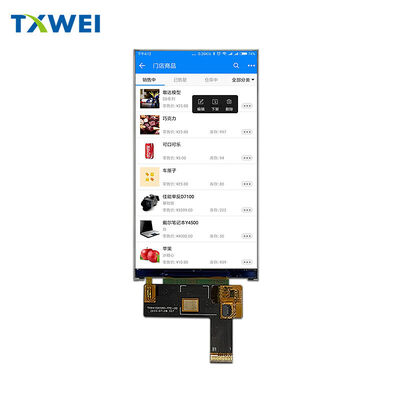

Supply 4.1-inch LCD screen, 720*1280 MIPI interface handheld PDA terminal TFT screen, 4.1-inch display

الـ MOQ: 1
السعر: قابل للتفاوض
فترة التسليم: 7-16 أيام
طريقة الدفع او السداد: خطاب الاعتماد، د/أ، د/ف، تي/تي
القدرة على التوريد: 10000 قطعة
معلومات مفصلة
وصف المنتج
معلومات مفصلة
مكان المنشأ
شنتشن
اسم العلامة التجارية
TXWEI
إصدار الشهادات
CE FCC ROHS
رقم الموديل
TXW410005B0
الوثيقة
TXW410005B0_SPEC.pdf
عدد وحدات البكسل:
720*1280
عرض الاتجاه:
IPS
عرض واجهة:
MIPI
سطوع:
800 نت
منطقة نشطة:
50.59*90.41
حجم المخطط التفصيلي:
51.19*91.01*1.7 مللي متر
درجة حرارة التشغيل:
-20+70 ℃
درجة حرارة التخزين:
-30+80 درجة مئوية
عدد الدبابيس:
31 دبوس
إبراز:

4.1-inch MIPI TFT LCD screen,720x1280 handheld PDA display,4.1-inch TFT LCD with warranty

,

720x1280 handheld PDA display

,

4.1-inch TFT LCD with warranty

وصف المنتج

TXW410005B0: 4.1-Inch High-Performance Display — Elevate Portable Device Visuals


In the dynamic landscape of portable electronics, a display’s performance can make or break user experience and product competitiveness. The TXW410005B0 single-screen display emerges as a game-changer, blending compact design, top-tier performance, and versatile compatibility to meet the rigorous demands of modern handheld devices. From fieldwork tools to navigation systems, this 4.1-inch display redefines visual excellence across industries.

Core Specifications at a Glance
Model Number:TXW410005B0 (Single-Screen)
Size:4.1 Inches
Resolution:720*1280 Pixels
Viewing Technology:IPS (In-Plane Switching)
Display Interface:MIPI 31 PIN
Display IC:ST7703I
Brightness:800 Nits
Active Area:50.59 × 90.41 mm
Outline Size:51.19 × 91.01 × 1.7 mm
Operating Temperature:-20°C to +70°C
Storage Temperature:-30°C to +80°C
Application Areas:Handheld PDAs, Two-Wheeler Navigation, Police Law Enforcement Equipment, etc.

Crisp Clarity & True-to-Life Colors

Featuring a 720*1280 high resolution, the TXW410005B0 delivers sharp text, vivid graphics, and accurate color reproduction. Whether users are accessing data, viewing maps, or interacting with apps, every detail comes to life — a critical advantage for professional tools and daily-use devices alike.

IPS Wide Viewing Angles

Equipped with IPS technology, the display ensures consistent visibility from any direction (178° horizontal/vertical). No more color distortion or washed-out visuals when sharing the screen, mounting the device, or using it in dynamic positions — perfect for collaborative work or on-the-go operations.

800 Nits Ultra-Bright Display

Engineered for all lighting conditions, the 800-nit brightness cuts through direct sunlight, dim indoor spaces, and everything in between. Users can read content effortlessly without eye strain, making it ideal for outdoor fieldwork, motorcycle navigation, or emergency response scenarios.

Robust Hardware & Reliable Design

Powerful & Efficient Core

Driven by the ST7703I display IC, the TXW410005B0 offers stable performance, fast response times, and low power consumption — essential for battery-powered portable devices. The MIPI 31 PIN interface ensures high-speed data transmission, simplified integration, and broad compatibility with mainstream host processors and hardware platforms.

Compact & Durable Build

With an ultra-slim profile (1.7 mm thickness) and compact outline size (51.19 × 91.01 mm), the display fits seamlessly into diverse device form factors — from sleek PDAs to rugged equipment. Its active area (50.59 × 90.41 mm) strikes the perfect balance between portability and usability, providing ample screen space without bulk.

Extreme Temperature Resistance

Built to withstand harsh environments, the display operates reliably from -20°C to +70°C and stores safely from -30°C to +80°C. Whether in freezing winters, scorching summers, or remote field locations, it maintains consistent performance — a must-have for mission-critical tools.

Versatile Applications Across Industries

The TXW410005B0 is designed to empower innovation in key sectors:
  • Handheld PDAs: Ideal for inventory management, logistics tracking, retail POS, and field service. Its clarity, brightness, and compact size boost productivity for workers on the move, enabling quick data access and input.
  • Two-Wheeler Navigation: Perfect for motorcycles, electric bikes, and scooters. Wide viewing angles and high brightness ensure navigation instructions stay visible at high speeds or in sunlight, while the durable design resists vibrations and outdoor elements.
  • Police Law Enforcement Equipment: Engineered for critical scenarios — body cameras, patrol devices, or vehicle-mounted displays. Delivers clear visibility of suspect data, maps, and real-time updates, supporting officers in making fast, informed decisions.

Why Choose the TXW410005B0?

✅ Superior Visuals: High resolution, IPS wide angles, and 800-nit brightness for all environments.
✅ Reliable Performance: ST7703I IC + MIPI interface = stability, efficiency, and easy integration.
✅ Rugged & Compact: Slim design and extreme temperature tolerance for harsh use cases.
✅ Versatile Compatibility: Tailored for PDAs, navigation, 执法 tools, and more portable devices.

Whether you’re a manufacturer developing next-gen handheld electronics or a business upgrading field equipment, the TXW410005B0 delivers the performance and reliability to stay ahead of the curve.

Get in Touch

For bulk orders, technical support, or customization inquiries, contact our sales team today. We’re dedicated to providing tailored solutions that drive your business forward.
