| الـ MOQ: | 1 |
| السعر: | قابل للتفاوض |
| فترة التسليم: | 7-16 أيام |
| طريقة الدفع او السداد: | L/C ، D/A ، D/P ، T/T. |
| القدرة على التوريد: | 10000pcs |

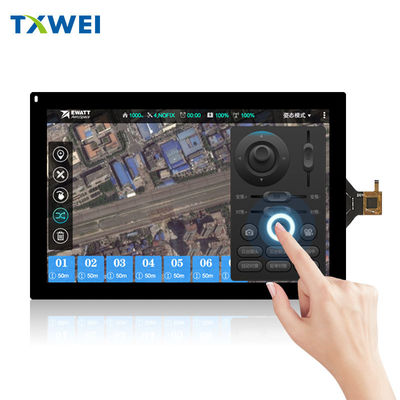

Tianxianwei Technology's 10.1 "Full View High Brightness Module TXW100089N0-SY is in mass production, with an industrial grade working temperature range of -10 ℃~+60 ℃, visible under 1900 cd/m ² sunlight. The 10.1-inch TFT LCD+CTP integrated module TXW100089N0-SY has officially been shipped in bulk. This module adopts a resolution of 1200 × RGB × 1920, a full view normally black panel, integrates a 4-lane MIPI interface, 90 white LED backlight, and G+G capacitive touch, and is designed for harsh application scenarios such as in car central control, industrial tablets, medical monitoring, outdoor terminals, etc. The first batch of 500 sets has been delivered to European in car projects.
Product Specifications
Display: 10.1 "full view angle, 225 PPI, 16.7M color, contrast ratio 1000:1
Brightness: 1900 cd/m ² (center value), readable under sunlight
Touch: G+G structure, ST1727 driver, supports 1mm glove/wet hand operation
Interface: 4-lane MIPI DSI, up to 1 Gbps per lane; 40 pin 0.5 mm FPC
Power supply: 3.3 V (main)/1.8 V (IO), adjustable backlight 24~30 V, PWM 1% -100% flicker free
Size: Module 150.06 × 229.56 × 5.7 mm; including CTP 159.96 × 241.18 × 7.75 mm
Weight: ≈ 180 g
Working temperature range: -10 ℃~+60 ℃ (industrial grade); Storage -20 ℃~+70 ℃/90% RH
Industrial grade reliability passes six extreme tests
Tianxianwei Quality Center revealed that TXW100089N0-SY has passed the high temperature 70 ℃/96 h, low temperature -20 ℃/96 h, cold and hot shock 10 cycles, high temperature and humidity 50 ℃/90% RH, ESD ± 15 kV air discharge and 1 m drop tests in one go, with brightness attenuation<3%, colorless floating, no bubbles, and no loose seals, meeting the long-term continuous operation needs of vehicle and medical use.
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
1200*3RGB(H)X1920(V) |
Dots |
|
Pixel arrangement |
RGB Vertical Stripe |
-- |
|
Pixel Pitch (W*H) |
0.1128(H)×0.1128(V) |
mm |
|
Active area |
135.36(H)x216.58(V) |
mm |
|
Viewing direction |
ALL O'CLOCK |
-- |
|
TFT Driver IC |
HX8279D |
-- |
|
TFT interface |
4lane MIPI interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
150.06(W) ×229.56(H) ×5.70(T) |
mm |
|
LCM+CTP Size(W*H*T) |
159.96(W) ×241.18(H) ×7.75(T) |
mm |
|
Touch structure |
G+G |
-- |
|
Touch Driver IC |
ST1727 |
-- |
|
Touch Interface |
I2C |
-- |
|
Pin No. |
Symbol |
LCM Functional |
Notes |
|
1 |
GND |
Power Ground |
|
|
2 |
GND |
Power Ground |
|
|
3 |
CTP_RST 1.8V |
Touch panel reset |
|
|
4 |
RESET 1.8V |
Reset pin. Setting either pin low initializes the LSI |
|
|
5 |
CTP_INT 1.8V |
Interrupt signal |
|
|
6 |
TE |
Frame head pulse for tearing effect. |
|
|
7 |
CTP_SDA 1.8V |
Touch panel I2C data |
|
|
8 |
LCD-ID(NC) |
No Connection. |
|
|
9 |
CTP_SCL 1.8V |
Touch panel I2C clock |
|
|
10 |
GND |
Power Ground |
|
|
11 |
CTP_VCC 3.3V |
Touch panel Power supply |
|
|
12 |
D0N |
Negative polarity of low voltage differential data 0 signal |
|
|
13 |
GND |
Power Ground |
|
|
14 |
D0P |
Positive polarity of low voltage differential data 0 signal |
|
|
15 |
LEDA |
Power supply for backlight anode input terminal. |
|
|
16 |
GND |
Power Ground |
|
|
17 |
LEDA |
Power supply for backlight anode input terminal. |
|
|
18 |
D1N |
Negative polarity of low voltage differential data 1 signal |
|
|
19 |
GND |
Power Ground |
|
|
20 |
D1P |
Positive polarity of low voltage differential data 1 signal |
|
|
21 |
LEDK |
Power supply for backlight cathode input terminal. |
|
|
22 |
GND |
Power Ground |
|
|
23 |
LEDK |
Power supply for backlight cathode input terminal. |
|
|
24 |
CLKN |
Negative polarity of low voltage differential clock signal |
|
|
25 |
LEDK |
Power supply for backlight cathode input terminal. |
|
|
26 |
CLKP |
Positive polarity of low voltage differential clock signal |
|
|
27 |
GND |
Power Ground |
|
|
28 |
GND |
Power Ground |
|
|
29 |
PWM |
PWM (Pulse Width Modulation) Signal Of LED Driving. |
|
|
30 |
D2N |
Negative polarity of low voltage differential data 2 signal |
|
|
31 |
LCD-IOVCC 1.8V |
Power Supply For I/O. |
|
|
32 |
D2P |
Positive polarity of low voltage differential data 2 signal |
|
|
33 |
GND |
Power Ground |
|
|
34 |
GND |
Power Ground |
|
|
35 |
VDD 3.3V |
Power Supply For LCD. |
|
|
36 |
D3N |
Negative polarity of low voltage differential data 3 signal |
|
|
37 |
VDD 3.3V |
Power Supply For LCD. |
|
|
38 |
D3P |
Positive polarity of low voltage differential data 3 signal |
|
|
39 |
GND |
Power Ground |
|
|
40 |
GND |
Power Ground |
|
TXW100089N0-SY 10.1 "Full View Highlighting Module: Overview of Application Scenarios
Car electronics
Central entertainment screen/passenger information screen/intelligent rearview mirror/streaming rearview mirror/rear headrest entertainment system/ceiling screen/bus/truck central control instrument panel and 360 ° surround view
industrial control
Industrial tablet/HMI human-machine interface/CNC machine operation panel/MES terminal for production line, scanning workstation machine/outdoor AGV/forklift onboard computer
medical equipment
Portable ultrasound/monitor/operating room anesthesia machine/infusion pump/dental/beauty equipment touch screen/rehabilitation device/blood analyzer
Outdoor and Transportation
Drone ground station/remote control display console/shipborne navigation/yacht bridge/highway toll terminal/ETC all-in-one machine/shared charging station/battery swapping station screen
Commercial and Retail
Smart ordering machine/POS cashier/self-service vending machine/coffee machine/hotel/elevator digital signage/express locker/storage cabinet interactive screen
Security and Emergency Response
Intelligent access control/visual intercom/law enforcement recorder playback station/emergency command vehicle terminal/portable security check device
Smart Energy
Photovoltaic inverter local monitoring screen/wind farm operation and maintenance tablet/battery BMS maintenance terminal/oilfield/mining site control instrument
Education and conferences
Interactive electronic class board/experimental training equipment terminal/intelligent conference screen/secondary screen/live teleprompter/guide station
Household and Specialty
Smart Home Control Panel/Outdoor Camping Mobile Screen/RV Integrated Control/High Altitude/High Humidity Environment Instruments
Full view angle, high brightness, industrial grade temperature range, and long lifespan design make TXW100089N0-SY almost the first choice for any scene that requires "visibility under sunlight+touch+high reliability"
