| الـ MOQ: | 1 |
| السعر: | قابل للتفاوض |
| فترة التسليم: | 7-16 أيام |
| طريقة الدفع او السداد: | L/C ، D/A ، D/P ، T/T. |
| القدرة على التوريد: | 10000pcs |

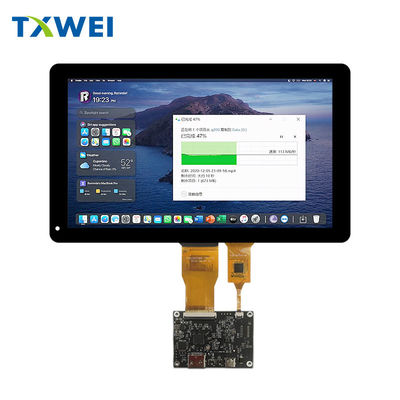

10.1-inch LCD touch screen with HDMI driver board: a "high brightness full view" large screen designed for agricultural machinery, trucks, and industrial scenes
Product Sketch
TXW100076B0-XL packs a 10.1-inch IPS screen, 700 nits high brightness backlight, G+G tempered touch, and plug and play HDMI driver board into a lightweight 252 × 150 × 6.5 mm body. Whether it's a tractor exposed to the sun at noon, a truck bouncing below zero, or a medical instrument thermostat, it can be seen at a glance and reached at a touch
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally Black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
1024*3RGB(H)X600(V) |
Dots |
|
Pixel arrangement |
RGB stripe |
-- |
|
Pixel Pitch (W*H) |
0.0725(W)x 0.2088(H)
|
mm |
|
Active area |
222.72H) × 125.28 (V)
|
mm |
|
Viewing direction |
ALL O’CLOCK |
-- |
|
TFT Driver IC |
TBD |
-- |
|
TFT interface |
24bit RGB Interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
235.16(W) x143.16(H) x4.60(T) |
mm |
|
LCM+CTP Size(W*H*T) |
252.00(W) x 150.00(H) x6.50(T) |
mm |
|
Touch structure |
G+G |
-- |
|
Touch Driver IC |
GT9271 |
-- |
|
Touch Interface |
I2C |
-- |
Core selling points
☛ 700 nits really high brightness - direct sunlight without pulling curtains, agricultural machinery operation reads as usual.
☛ IPS full view angle of 178 ° - there is no color difference on the same screen for the driver's side, passenger side, and rear seats.
☛ G+G tempered touch panel -1.1mm surface glass, Mohs 6H scratch resistant; The GT9271 chip supports 5-point touch with water.
☛ -Working temperature range of 20~+70 ℃ - Northeast grain warehouses, southern Xinjiang deserts, and plateau tunnels are online all year round.
☛ HDMI Plug and Play -1080p adaptive, Raspberry Pi Jetson, The car's Android box 0 driver lights up.
☛ RGB 24 bit native port -50 pin FPC reserved for STM32, NXP, and Renesas MCU geeks, capable of smooth 60Hz refresh even on bare metal devices.
Actual testing scenario
☛ +45 ℃ tractor roof: continuous exposure to sunlight for 4 hours, shell temperature of 68 ℃, no yellowing, no bubbles.
☛ -20 ℃ cold start: The cold storage of the carriage is left to stand for 12 hours and lights up after 3 seconds, with no drift on the touch.
☛ 80000 clicks: Only nail lines remain on the surface of G+G, without scratches; GT9271 coordinate error<0.5 mm.
☛ 12V vehicle surge: Input terminal ± 100V transient, onboard TVS clamp, screen does not restart
Interface and Line Sequence - Driver Board Side:
✔ HDMI-A: 1080p/720p automatically scales to 1024 × 600 without the need for EDID rewriting.
✔ Micro USB: HID multi touch, Windows/Linux/Android drive free.
✔ 5 V-DC: 2.1mm socket, anti reverse insertion, can be directly connected to car mounted 12 → 5 V voltage regulators.
✔ Backlight independent power supply: 8.4~9.6 V/520 mA constant current, supports PWM 1%~100% dimming, night mode power consumption<0.4 W.
Application Sketching
Agricultural machinery central control -10.1-inch replaces 7-inch, with map, camera, and plowing depth data displayed on one screen; 700 nits visible at noon, dust cover does not need to be closed.
Truck navigation - IPS full view, the passenger can also see the panoramic view of reversing; G+G surface is resistant to diesel and nail scratching.
Industrial equipment HMI - directly mounted on a 35mm DIN rail box, fully online for -20 ℃ cold storage and+70 ℃ drying room.
Medical equipment - IIC touch controls with a 3-meter cable without delay, allowing for precise waveform selection even with latex gloves.
