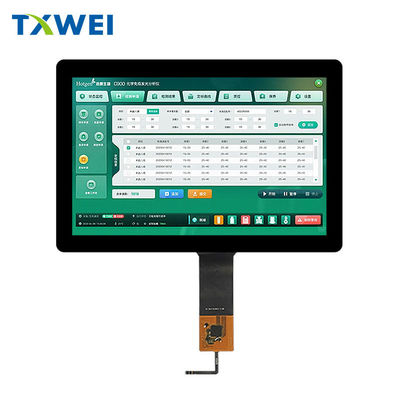

TXW121003B0-LD: 12.1 '' 750 nits high brightness industrial grade IPS display module——A 'sunshine screen' designed for harsh environments
In scenarios such as agricultural machinery, healthcare, industrial automation, and smart parking, traditional display screens often struggle due to strong direct sunlight, high and low temperature impacts, and complex electromagnetic environments. TXW121003B0-LD is designed with the core concept of "visible, touchable, and durable", bringing three major breakthroughs to truly adapt information display to the harsh challenges of outdoor and industrial environments.
|
ITEM |
Sandard value |
Unit |
|
LCD Type |
Normally black |
-- |
|
Drive element |
TFT active matrix |
-- |
|
Number of pixels |
1280*3RGB(H)X800(V) |
Dots |
|
Pixel arrangement |
RGB stripe |
-- |
|
Pixel Pitch (H*V) |
204(H) x204 (V) |
um |
|
Active area(H*V) |
261.12(H) x 163.20(V) |
mm |
|
Viewing direction |
ALL O’CLOCK |
-- |
|
TFT Driver IC |
TBD |
-- |
|
TFT interface |
4Lane LVDS Interface |
-- |
|
Approx. Weight |
TBD |
g |
|
LCM Size(W*H*T) |
276.50(W) x 179.60(H) x5.90(T) |
mm |
|
LCM+CTP Size(W*H*T) |
293.66(W) x 198.66(H) x8.15(T) |
mm |
|
Touch structure |
G+G |
-- |
|
Touch Driver IC |
ILI2511 |
-- |
|
Touch Interface |
I2C |
-- |
1,Strong light readability: 750 nits high brightness+IPS full view angle
With a brightness of up to 750 nits, the image remains sharp and clear even under direct sunlight at noon;
IPS technology provides a 178 ° full field of view, with no color deviation when viewed from the side, meeting the needs of multi angle monitoring;
1280 × 800 resolution, with richer detail display, making agricultural machinery navigation, medical waveforms, and equipment parameters clear at a glance.
2,Stable Touch Control: G+G Process+ILI2511 Flagship Touch Chip
G+G (tempered glass+tempered glass) structure, surface hardness ≥ 7H, scratch and wear resistance;
Supports wet hand and glove operation, with precise touch control in fields, operating rooms, and factory workshops;
IIC interface, minimalist wiring, high integration, shortens the development cycle of the entire machine.
3,Industrial grade reliability: wide temperature operation from -20 ℃ to+70 ℃
Working temperature -20 ℃~+70 ℃, storage temperature -30 ℃~+80 ℃, fearless of extreme cold and heat;
LVDS 40 pin standard interface, plug and play with mainstream industrial control motherboards and ARM boards;
8.15mm ultra-thin body, 293.66 × 198.66mm compact shape, easy to embed into various devices.
Typical application scenarios
• Agricultural machinery instrument display: still clear under direct sunlight, improving field operation efficiency;
• Medical equipment and instruments: high brightness+high resolution, waveform and image details are vividly displayed;
• Industrial automation: wide temperature range+shock resistance, 7 × 24-hour continuous operation for peace of mind;
• Smart parking gate: IPS full view+high brightness, vehicle recognition information can be viewed from multiple perspectives.
• TXW121003B0-LD is now fully accepting samples and bulk orders, helping your next generation smart devices shine under the sunshine
